Clamp gate avlve without silt of series LWXZF（Parameters）

• Part No.
• 0608050103
• Manuf. No.
• Standard Pack Quantity
• 1

• For prices and availability please Register or add to cart and submit as enquiry.
• 　
• EACH

Description

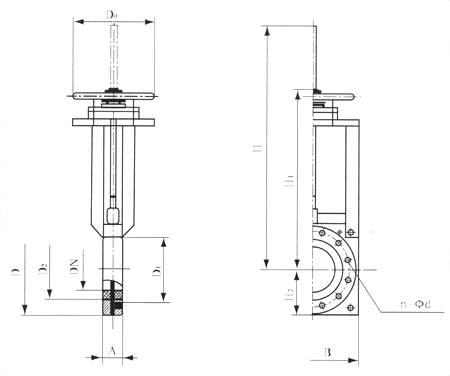

Structure and dimension of hand-operated gate valve clamping without slit(Figure)

Parameter table of structure and dimension of gate valve clamping without slit of LWXZ F-0.6

DN	A	D	D1	D2	n-Φd	D0	H	H1	H2	B
50	60	165	140	84	4-Φ14	270	500	390	82.5	165
65	60	185	160	102	4-Φ14	270	535	415	92.5	185
80	64	200	190	118	8-Φ18	270	575	435	107.5	215
100	64	220	210	144	8-Φ18	270	635	475	115	230
150	70	285	265	194	8-Φ18	360	800	590	140	280
200	70	340	320	244	12-Φ18	360	916	664	170	340
250	76	395	375	304	12-Φ18	360	1056	749	200	400
300	83	445	440	360	12-Φ18	610	1190	830	232.5	465

Parameter table of structure and dimension of gate valve clamping without slit of LWXZ F-1.0

DN	A	D	D1	D2	n-Φd	D0	H	H1	H	B
50	60	165	125	94	4-Φ18	270	510	400	95	190
65	60	185	145	112	4-Φ18	270	540	420	100	200
80	64	200	160	126	8-Φ18	270	580	440	112.5	225
100	64	220	180	150	8-Φ18	270	640	480	120	240
150	70	285	240	200	8-Φ22	360	810	600	150	300
200	70	340	295	256	12-Φ22	360	926	674	180	360
250	76	395	350	316	12-Φ22	360	1066	759	210	420
300	83	445	400	366	12-Φ22	610	1190	830	235	470

Parameter table of structure and dimension of gate valve clamping without slit of LWXZ F-1.6

DN	A	D	D1	D2	n-Φd	D0	H	H1	H2	B
50	60	165	125	94	4-Φ18	270	510	400	95	190
65	60	185	145	112	4-Φ18	270	540	420	100	200
80	64	200	160	126	8-Φ18	270	580	440	112.5	225
100	64	220	180	150	8-Φ18	270	640	480	120	240
150	70	285	240	200	8-Φ22	360	810	600	150	300
200	70	340	295	256	12-Φ22	360	926	674	180	360
250	76	4.5	355	316	12-Φ26	360	1071	764	215	430
300	83	460	410	366	12-Φ26	610	1195	835	240	480
