Clamp gate avlve without silt of series LWXZF（Size&Parameters）

• Part No.
• 0608050104
• Manuf. No.
• Standard Pack Quantity
• 1

• For prices and availability please Register or add to cart and submit as enquiry.
• 　
• EACH

Description

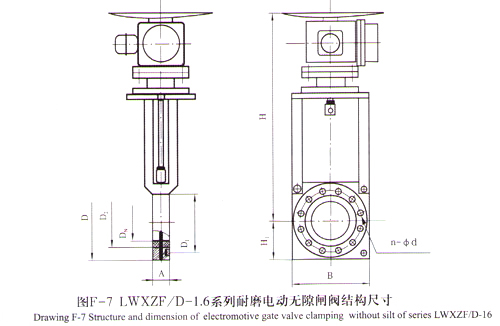

Structure and dimension electormotive gate valve clamping without silt(Figure)

DN	BEARING pressure (Mpa)	Moder of electric device	Max torque (N/M)	Moter powe r(KW)
50	1.6	DZ10	100	0.25
65	1.6	DZ10	100	0.25
80	1.6	DZ10	100	0.25
100	1.6	DZ10	200	0.37
125	1.6	DZ10	200	0.37

Structure length and conneeting dimension of series LWXZF/D-1.6

DN	A	D	D1	D2	n-Φd	B	H	H1
50	60	165	125	94	4-Φ18	180	546	90
65	60	185	145	112	4-Φ18	200	565	100
80	64	200	160	126	8-Φ18	220	580	110
100	64	220	180	150	8-Φ18	240	610	120
125	70	250	210	178	8-Φ18	270	640	135
