FLQ discharging ball valve

• Part No.
• 0608050101
• Manuf. No.
• Standard Pack Quantity
• 1

• For prices and availability please Register or add to cart and submit as enquiry.
• 　
• EACH

Description

1.Applications
It can be used for discharging materials at the bottom of thickener, reaction kettle, variety of slots and tins in the fields of mine, coal and electricity, sewage treatment, chemical industry, and nonmetal etc. When technology demands discontinuity discharging and the solid particle or the concentration of pulp is too large to become accretion easily, FLQ discharging ball valve has the advantages of simple structure, low expense, convenient operation, fluent discharging, and strictness, and it is quite easy to shut down. All these capabilities are incomparable for other valves.
2.Features
●Discontinuity discharging makes it easy to turn on and discharge fluently, and also very convenient to turn off.
●It keeps a simple structure, easy to repair.
●Having been lined with high wearable rubber, it has high abrasion and corrosion resistance and a longer service life.
●It has several structural types, such as manual operation, gas motion, and electro motion.
●Enduring pressure ≤0.6Mpa
3.Type sign instance
       FLQ   -   100
         │            │
         │            ┕───100mm Designed internal diameter
         ┕─── Type of discharging ball

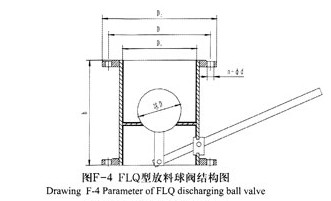

4.Parameter of FLQ discharging ball valve

Model	Internal diameter  mm	Ball diameter D mm	Contour dimension					weight kg
			D0	D1	D2	h	n-Φd
FLQ-100	100	60	100	170	205	230	8-Φ18	17
FLQ-150	150	90	150	225	260	250	8-Φ22	22
FLQ-200	200	120	200	280	315	270	8-Φ22	31
FLQ-250	250	160	250	335	370	310	12-Φ22	42
FLQ-350	300	200	300	395	435	370	12-Φ22	52
