Pinchvalve

• Part No.
• 0608050100
• Manuf. No.
• Standard Pack Quantity
• 1

• For prices and availability please Register or add to cart and submit as enquiry.
• 　
• EACH

Description

Model mark example
         L      JF      Ⅱ - 50
         │      │        │    │
         │      │        │    ┕───50mm Nominal diameter is 50mm
         │      │        ┕───Type
         │      ┕───pinch valve
         ┕─── wearable rubber

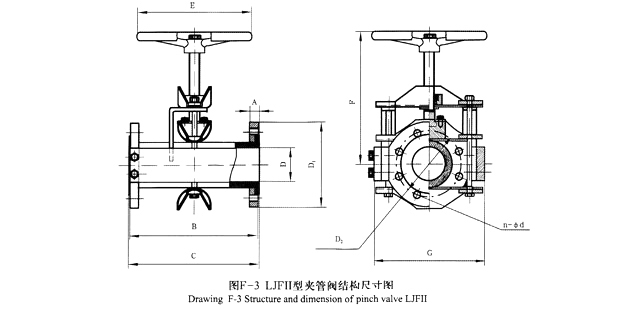

SIZE	D	B	C	A	E	F	G	Standard flange			Weight kg
								flange dim	Bolt PCD	Bolt dim	Aluminum	Cast iron
20	20	144	150	15	119	80	100	105	75	4-Φ14	1.6	2.8
25	25	159	165	15	119	90	125	115	85	4-Φ14	2.3	3.2
40	40	199	205	17	119	118	162	140	100	4-Φ18	3.5	5.5
50	50	229	235	17	220	156	185	150	110	4-Φ18	6.5	12.5
65	65	299	305	17	220	190	200	165	125	4-Φ18	8.8	15
80	80	309	315	21	220	202	225	185	145	4-Φ18	10.5	22
100	100	354	360	25	220	247	26905	200	160	8-Φ18	18.2	41
125	125	419	425	28	280	310	350	220	180	8-Φ18	29	66
150	150	479	485	29	280	343	373	285	240	8-Φ18	42	99
200	200	594	600	30	280	457	486.5	340	295	8-Φ22	87	230
According to customer needs, can provide further10" 12" 14"
