Wearable dewatering screen

• Part No.
• 0608030100
• Manuf. No.
• Standard Pack Quantity
• 1

• For prices and availability please Register or add to cart and submit as enquiry.
• 　
• EACH

Description

2.Technical data
Nominal feed capicity(dry mtph)of dewatering sereen

Model	Minimum feed slurry concentration 30% solids by volume						Unit motor power
	Coal tine nominal-0.5mm+0.1mm SGL5		Conerete sand aprox100%-5mm 50%-0.6mm SG2.7		fine sand 90%-1mm SG2.7		980rpm	1460rpm
	1460rpm	980rpm	1460rpm	980rpm	1460rpm	980rpm
VD-600	6-8	10-13	14	28	10	21	1.9	1.3
VD-900	9-12	15-20	21	42	16	32	1.9	1.7
VD-100	15-19	24-30	33	67	25	50	4.0	2.9
VD-1200L	18-24	28-35	40	80	30	60	4.0	2.9
VD-1500	30-35	50-60	63	125	47	94	5.1	5.1
VD-1800	35-45	60-80	77	153	57	115	5.1	5.1
VD-2100	-	85-100	-	225	-	164	15	-
VD-2400	-	95-100	-	250	-	190	15	-

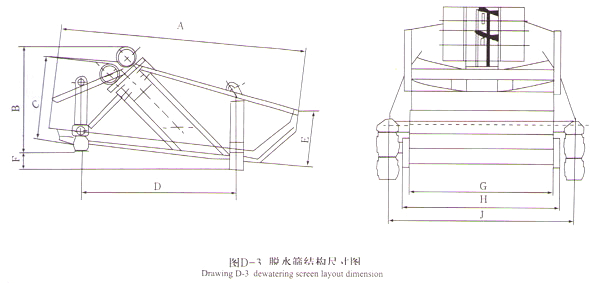

Drawing D-3 dewatering sereen layout dimension

Model	Unit	A	B	C	D	E	F	G	H	J
VD-600	mm	2108	1099	687	1353	632	n/a	24	746	1010
VD-600	mm	2515	1086	610	1643	681	n/a	914	1105	1295
VD-600	mm	3035	1249	1043	1840	894	n/a	1219	1397	1600
VD-600	mm	3821	1765	1320	2426	860	235	1524	1641	1994
VD-600	mm	3821	1765	1320	2426	860	235	1829	1946	2299
VD-600	mm	4869	2440	1991	3353	1197	297	2134	n/a	2659
VD-600	mm	4869	2440	1991	3353	1197	297	2438	n/a	2964
