LC IV Hydrocyclone

• Part No.
• 0608020103
• Manuf. No.
• Standard Pack Quantity
• 1

• For prices and availability please Register or add to cart and submit as enquiry.
• 　
• EACH

Description

CLIV type hydraulic cyclone, developed by company using CFD model, three dimensional analysis system and other professional design theory, is a. kind of highly effective hydraulic cyclone reaching world leading level. CLⅣ type hydraulic cyclone adopts three dimensional snail square tube feeding structure, so materials can not only be feed through the snail in circle direction but also be feed along the direction of underflow outlet in the axial direction. Snail square tube feeding type in circle direction is able to make the materials closer to the wall of the cyclone, with least feeding resistance; the feeding type along the direction of underflow outlet in the axial direction

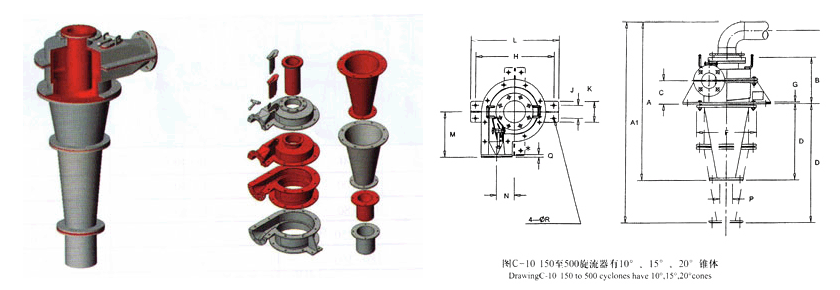

CLIV type hydraulic cyclone adds an changeable cuneiform adjusting device at the feeding inlet, thus it can adjust quickly in a project to change the size of the inlet of the cyclone ,to improve the classifying efficiency, and this structure is unique in all cyclones, meanwhile,CL IV type hydraulic cyclone has three kinds of angles--10°,15°,20°for you to choose in the cone part.
●It adopts three dimensional snail type feeding structure, achieves three dimension feeding from circle and axis direction, eliminate the confused flow disturb nearby the overflow tube after materials gets into the cyclone, speedups the swirl flow of rough materials towards the underflow outlet, avoids gyre caused by pressing feeding, good to improve the classifying efficiency.
●Square tube feeding type makes materials closer to the wall of the cyclone ,and causes least resistance to minerals and largest radiation strength ,and least abrasion to the feeding box.
●The unique cone adjusting device at the feeding inlet can adjust the size of the cyclone inlet to improve the classifying efficiency.
●The cone-adjusting valve increases number of changeable parts in the inlet tube, avoiding the trouble of changing the whole liner of the cyclone.
●The excellent highly wearing rubber liner will greatly reduce the producing expense and meanwhile it can help your cyclone to keep the dimension and shape of the internal flowing tube, so as to keep stable classifying efficiency.
●We can also provide model pressed highly wearing rubber liner, to increase the service life.
●A professional cyclone selection software will help you to choose a correct type rapidly.
b.Technique parameters
LC IV standard cyclone technique and capacity parameters form

Type of cyclone	capacity m³/h	Classifying point μm	Inlet pressure kpa
150	10-30	30-40	0.03-0.1
250	30-100	40-50	0.03-0.1
375	60-180	45-60	0.03-0.1
500	120-250	50-70	0.03-0.1
660	180-360	60-80	0.03-0.1
840	320-720	65-90	0.03-0.1
