LCIII Hydrocyclone

• Part No.
• 0608020102
• Manuf. No.
• Standard Pack Quantity
• 1

• For prices and availability please Register or add to cart and submit as enquiry.
• 　
• EACH

Description

LCIII Hydrocyclone is the world-class cyclone developed by i Company according to the Japanese technique. All rubber parts are made of  wear-resistant rubber.

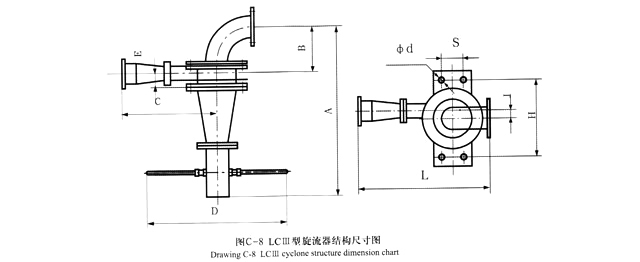

The structure and size of the cyclone are rational. A special designed adjustable tube near the spigot is for spigot mouth precise adjustment, especially applicable for fine particle classification and dewatering. Also it is easy for operation and low index fluctuation.
a.Features
●A special designed adjustable tube near the spigot is for spigot outlet precise adjustment, therefore for precise adjustment of cyclone classi
fication index.
●Reasonable structure design, high classification index and low fluctuation index.
●Especially for fine materials classifying and dewatering.
b.Technique parameters
LCIII standard cyclone technique and capacity parameters form

cyclone Spees	capacity m³/h	Classification range μm	Overflow box outlet diameter mm	Spigot diameter mm	Inlet pressure kpa
75	5-15	25-50	10-32	5-15	40-300
150	15-70	30-60	20-50	15-32	40-300
230	20-150	35-80	58-90	20-58	40-300
300	40-250	40-90	76-120	30-72	40-250
