LCⅡ Hydrocyclone

• Part No.
• 0608020101
• Manuf. No.
• Standard Pack Quantity
• 1

• For prices and availability please Register or add to cart and submit as enquiry.
• 　
• EACH

Description

The LC II Hydrocyclone developed by  Company reached world-class advanced level. Similar with “Krebs ” hydrocyclone, its tangentially feeding materials through the inlet branch increases the centrifugal force, therefore improves the classification level and reduces the wear and tear of the feeding box greatly.
a.Features
●The way of tangentially feeding through the inlet branch reduces the turbulence of the burst emanative flow when materials entry, makes
a smooth movement of liquid inside cyclone, therefore gives a sharp classification.
●The way of tangentially feeding through the inlet branch lowers the impact on feeding box when materials fling to the cyclone.
●The rational length proportion of cylinder and cone and reasonable insert depth of overflow box result in high classification efficiency.
●Especially suitable for classification operation.
b.Technical and capacity parameters
LCⅡ standard cyclone technique and capacity parameters

cyclone Spees	capacity m³/h	Classification range μm	Overflow box outlet diameter mm	Spigot diameter mm	Inlet pressure kpa
150	7.5-15	35-75	25-50	16-32	98
300	37-43	45-105	65-75	35-40	98
350	74-90	50-110	95-115	60-80	98
375	60-350	50-110	95-152	60-80	40-250
500	130-470	60-120	140-180	50-140	40-200
660	230-780	70-150	200-300	65-140	40-150

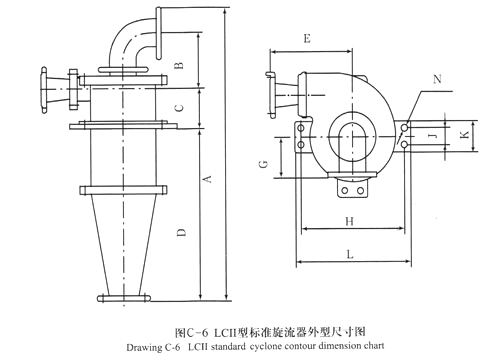

LCⅡstandard cyclone contour dimension

cyclone Spees	A	B	C	D	E	G	H	L	J	K	N
100	150	1065	154	95	766	160	290	330	46	80	14
300	1392	266	182.5	826	409	192	520	580	80	150	18
350	1859	323	219	1204	399	220	610	660	80	150	18
375	1853	358	220	1163	416	220	600	660	80	150	18
500	2359	471	159	1574	474	400	730	800	80	150	18
660	2892	740	443	1508	556	525	980	1040	100	150	18

Actual parameters may vary along with the computer aid selection result.
