LCⅠ Hydrocyclone

• Part No.
• 0608020100
• Manuf. No.
• Standard Pack Quantity
• 1

• For prices and availability please Register or add to cart and submit as enquiry.
• 　
• EACH

Description

c.Technique parmeters

cyclone Spees	capacity m³/h	Max particle size mm	Classification range μm	Overflow box outlet diameter mm	Spigot diameter mm	Inlet pressure kpa
100	5-20	3	35-75	30-40	6-28	40-300
125	10-40	3	35-75	38-60	6-28	40-300
150	15-70	3	35-75	38-60	6-38	40-300
225	20-150	4	40-100	57-89	20-58	40-300
300	40-250	6	45-110	76-120	30-72	40-250
375	60-350	8	50-110	94-152	30-72	40-250
450	100-430	10	60-120	114-178	50-140	40-200
500	130-470	10	60-120	114-180	50-140	40-200
600	170-600	10	65-140	178-254	82-140	40-200

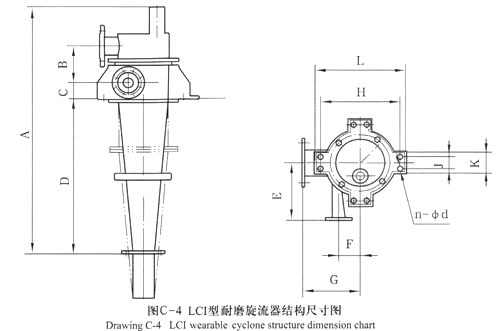

LCI Standard Cyclone Dimensions Table

cyclone  Spees	A	B	C	D	E	F	G	H	I	J	K	Φ
100	662	120	58	457	155	41	130	210	240	35	60	4-Φ14
125	807	138	60	500	150	49.5	156	260	300	46	80	4-Φ14
150	937	142	64	592	160	55	156	290	330	46	80	4-Φ14
225	1292	192	80	857	227	89	232	408	450	76	128	4-Φ18
300	1117	222	102.5	580	359.5	110	272.5	484	534	78	130	4-Φ18
375	1337	273	125	761.5	394	140	280	560	610	76	128	4-Φ18
450	1583	327.5	152.5	880	510	164	310.5	660	736	78	155	4-Φ18
500	1695	354.5	170	935	1530	186	350	700	780	80	160	4-Φ18
600	2066	392	173	1275	581	229	388	812	889	76	152	4-Φ18

Actual parameters may vary along with the computer aid selection result.

Remark : The overflow pipe of 125 and 150 cyclones can be swiveled through 90°to any position.
The overflow pipe of 225 cyclone can be swiveled through 60°to any position.
The overflow pipe of 300、375、450 and 500 cyclones can be swiveled through 45°to any position.
The overflow pipe of 600 cyclone can be swiveled through 30°to any position.
