Steel constant(reducing)tee lined wearable rubber

• Part No.
• 0608060106
• Manuf. No.
• Standard Pack Quantity
• 1

• For prices and availability please Register or add to cart and submit as enquiry.
• 　
• EACH

Description

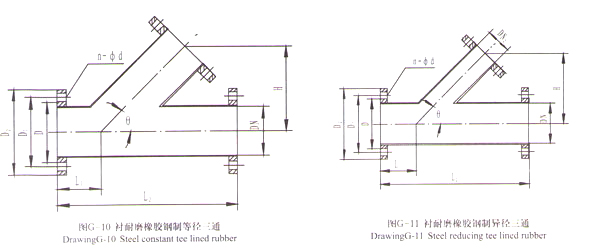

Parameter and size of steel constant(reducing)tee lined wearable rubber

DN	D	D1	D2	L					kg					n-Φd	DN
				90°	60°	45°	30°	22°	90°	60°	45°	30°	22°
150	210	240	280	500	520	540	750	750	250	180	150	130	130	8-Φ23	According,to customers requirements
200	265	295	335	600	540	650	1000	1000	300	180	150	180	180	8-Φ23
250	320	350	390	600	580	700	1150	1150	300	200	200	215	215	12-Φ23
300	368	400	440	600	600	900	1300	1300	300	200	300	250	250	12-Φ23
350	428	460	500	700	700	1150	1500	1500	250	220	325	275	275	16-Φ23
400	482	515	565	615	850	850	1300	1650	475	250	350	300	300	16-Φ23
450	532	565	615	1000	1050	1400	1850	1850	500	300	375	350	350	20-Φ23
500	585	620	670	1000	1250	1500	2000	2000	500	400	400	400	400	20-Φ23
600	685	725	780	1000	1400	1700	2400	2400	500	450	450	450	450	20-Φ23
