Expansion piece of pipeline LGS

• Part No.
• 0608060102
• Manuf. No.
• Standard Pack Quantity
• 1

• For prices and availability please Register or add to cart and submit as enquiry.
• 　
• EACH

Description

1.Structure features
Simple structure, free stretch, no resistance, greatly prolonging service life of the pipeline for wearable rubber liner.
2. Advantages
If it is connected with the pipeline at regular distance for long distance conveying, there are the following advantages:
●High abilityto adapt to season changes, dilation due to heat and contract due to cold caused by the conveying medium.
●Handy for rapid repair in the production process line.
●Helping to rush to repair refuse ore pipeline in a long distance field. When there is no electric welding condition and the conveying
medium needn’t be evacuated, the expansion piece of pipeline can be disassembled. It saves time, labor and money.
3.Type
There are two types of expansion piece of pipeline: LGS-1.0 and LGS-1.6 according to the bearing pressure 1.0Mpa and 1.6 Mpa.

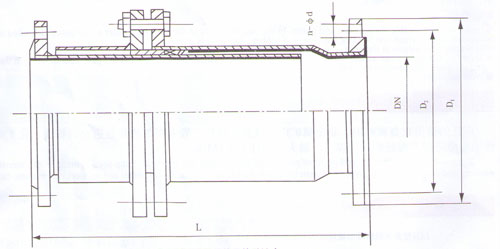

Main connection and layout dimension of expansion piece of pipeline LGS

DN	D1	D2	n-Φd	L mm
50	165	125	4-Φ18	595-795
80	200	160	8-Φ18
100	220	180	8-Φ18
125	250	210	8-Φ18
150	285	240	8-Φ22
200	340	295	8-Φ22
250	395	350	12-Φ22
300	445	400	12-Φ22
350	505	460	16-Φ22
400	565	515	16-Φ26
450	615	565	20-Φ26	645-845
500	670	620	20-Φ26
600	780	725	20-Φ30
