PNLXH Sump sand pump

• Part No.
• 0608010105
• Manuf. No.
• Standard Pack Quantity
• 1

• For prices and availability please Register or add to cart and submit as enquiry.
• 　
• EACH

Description

1.Application
      Applicable for pumping slurry, thick liquid and sewage with suspension in metal and nonmetal mine, coal mine, chemical industry, papermaking, agriculture, foodstuff areas.
The impeller and lining of YP15-25/XH sump vertical sand pump were moulded by Xinhai rubber featured wear-resistance, anticorrosion and easy-to-change.
2.Model mark description
        2        PNL    /  XH
         │         │            │
         │         │            ┕────────XH rubber parts
         │         ┕─────────Verfical slurry pump
         ┕───────── 50mm Outlet diamerir 50mm
3.Technical parameters
PNT/XH Smup sand pump technical parameters

TYPE	Flow m³/h	Head m	Speed  r/min	Shaft power KW	Efficieney %	Impeller diameter  mm
2PNL/XH	30	22	1450	5.45	33	265
	47	19		6.25	39
	58	17		6.9	39
3PNL/XH	54	26	1470	12	32	300
	108	21		14.7	42
	151	15		16.7	37

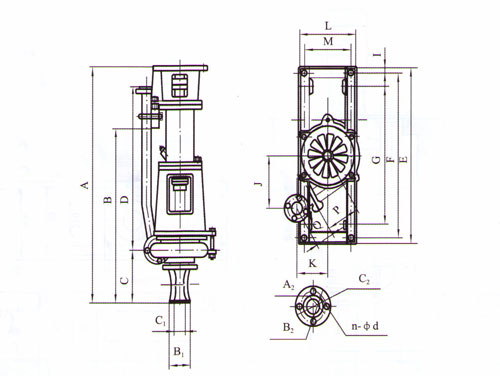

4.Contour dimension
