sump sand pump

• Part No.
• 0608010103
• Manuf. No.
• Standard Pack Quantity
• 1

• For prices and availability please Register or add to cart and submit as enquiry.
• 　
• EACH

Description

1.Application
Applicable for pumping slurry, thick liquid and sewage with suspension in metal and nonmetal mine, coal mine, chemical industry, papermaking, agriculture, foodstuff areas. The impeller and lining of YP15-25/XH sump vertical sand pump were moulded by Xinhai rubber featured wear-resistance, anticorrosion and easy-to-change.
2.Model mark description
        40       PV  ---  SPR  / XH
         │         │            │        │
         │         │            │        ┕───────── Wearable rubber parts
         │         │             ┕────────rubber sump sand pump
         │           ┕─────────PV type beering assembly
         ┕─────────40mm Outle diamerir 40mm
3.Technical parameters

Specs	Flow  m³/h	Head m	Speed r/min	Moter Power KW	η %	Impeller mm	Outlet  Diameter mm
40PV-SPR/XH	17.28-39.6	4-26	1000-2200	15	40	188	40
60QV-SPR/XH	25.5-105	5.5-30.5	700-1500	30	51	280	65
100RV-SPR/XH	64.8-285	7.5-36	600-1200	75	62	370	100

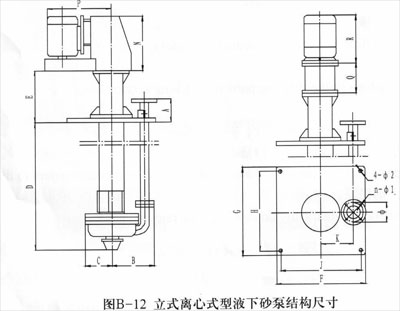

4.External dimension
