Ball Isolation pulp pump

• Part No.
• 0608010102
• Manuf. No.
• Standard Pack Quantity
• 1

• For prices and availability please Register or add to cart and submit as enquiry.
• 　
• EACH

Description

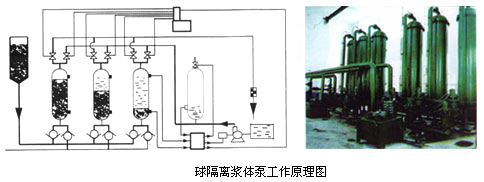

1.Principle of work
●Feeding pulp: The controller controls the hydraulic station to close the clean waterinduction valve and open the clean water return valve. Pulp in the high position feeder under the pressure difference entrance the check valve and then move to the underside of ball float molded with high pressure abrasive resistant material in separation tank ball and meanwhile the clean water above the highly wearable ball float return to backwater pool through the backwater valve.
●Discharging pulp: The controller controls the hydraulic station to close the clean water return valve and open the clean water induction valve. Water pump supplies high-pressure water from the top of the isolation tank, to promote the highly wearing ball float to move downward, meanwhile, the feeding valve automatically closes and the discharging valve automatically opens duo to the pressure, pulp under the highly wearing ball float are discharged. Three isolation tanks alternatively input and discharge pulp, to ensure the equipment to work continuously and stably. The controller examines the working condition of the ball float through a detecting head to show and adjust the flow of water pump matching with pulp flow and checks out malfunctions.
2.Applications
Ball isolation pulp pump is suitable for the transportation of gangue, concentrates, bauxite, red mud, mortar, coal-water slurry etc. in the fields of gold, mine, electric power plant, aluminum factory, coal, chemical industry, construction material industry etc and it can also be used to discharge slurry and fill in stages under the well, and supply materials under the high pressure to autoclave and reactor.
3.Parameter of ball separation pulp pump

pressure Mpa		1.6     2.5     3.0     3.5     4.0     4.5    5.0    5.5    6.4
flow m³/h		25	35	50	85	100	120	150	200	250	300	400	500
External dimension m	L	2	2	2	2.8	3.0	3.5	3.8	4.0	4.2	4.5	4.8	5.0
	B	2.5	2.6	2.6	3.0	3.5	3.8	4.2	4.5	4.5	4.8	5.0	5.0
	H	3.5	3.8	4.2	5.0	5.0	5.0	6.0	6.5	6.5	7.0	7.5	8.0
power of water supplying pump KW		N=1.2PxQ/3.6η(KW),P-Mpa,Q-m³/h,η-Pump efficiency, practical parameter mainly depends on the pump selected

selection introduction Usually, when choosing pump, pump flow, delivery lift according to pulp transportation water conservancy, we should keep 10% more than the practical parameter ahead.
4.Type sign example
    QGB ─  300  /   2.5
         │         │          │
         │         │          │
         │         │          ┕───────── 2.5Mpa prcssurc is 2.5Mpa
         │         │
         │         ┕───────── 300m³/h flow rain is 300m³/h
         │
         ┕───────── Ball isolation pulp pump
5.Advantages
●Single-stage pump replaces the multistage pump, covers less area, needs fewer operators, causes fewer accidents, and avoids the trouble of long distance transporting water and electricity.
●High head, large flow rate, saving energy and electricity, abrasion proof and timeproof.
●Both feeding and discharging check valves are lined with Xinhai high wearable rubber liner, having much longer service life.
●Both feeding and discharging ball float valves are molded with high abrasive resistant materials of Xinhai, their service life is more than 15 times of common rubber and more than 6 times of polyurethane.
●It is very cheap and practical to use ball float and water as media to transfer drive.
●The moving frequency of equipment is low, so the wearing parts have a long service life.
●The equipment has a good adaptability, safe and reliable.
●It is easy to maintain. The wearing parts have a light weight and small cubage, so it is convenient to disassembly, check and repair.
●It can save energy by adjusting speed and automatically control the flow rate and head.
