Rivets

• Part No.
• 0108080101
• Manuf. No.
• Standard Pack Quantity
• 1

• For prices and availability please Register or add to cart and submit as enquiry.
• 　
• EACH

Description

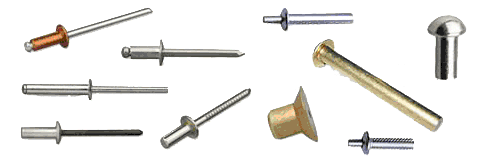

Rivets

DIN124, DIN302, DIN660, DIN661, DIN662, DIN674, DIN675, DIN7337 Blind rivets, Multi-grip rivets, Drive pin rivets, Solid rivets manufactured to ASME B18.1.1 & SAE J-1200 specifications

Rivets: A metal bolt or pin having a head on one end, inserted through aligned holes in the pieces to be joined and then hammered on the plain end so as to form a second head.

Material: Aluminum alloy, Carbon steel, Stainless steel
Finish: Zinc plated, Plain

Diameter:
Blind rivets: 3/32" - 1/4", Multi-grip rivets: 1/16" - 3/16", Drive pin rivets: 1/8" - 3/8",
Solid rivets: 1/8" - 3/16"

Grip range:
Blind rivets: .03-.12 - .75-1.0, Multi-grip rivets: .031-.187 - .500-.781, Drive pin rivets: 1/8" - 3/8"

Length: Solid rivets: 3/4" - 3"
