Nylon Insert Nuts & All-Metal Lock Nuts

• Part No.
• 0108030105
• Manuf. No.
• Standard Pack Quantity
• 1

• For prices and availability please Register or add to cart and submit as enquiry.
• 　
• EACH

Description

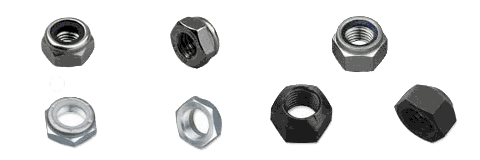

Nylon Insert Nuts & All-Metal Lock Nuts

DIN982, DIN985, DIN6924, DIN980

Nylon insert nuts: Hex nut with a nylon-filled collar at its back end. When a screw reaches the collar, the threads and nylon form a tight, frictional fit, restricting movement of screw when it is subjected to vibration. The nylon insert comes in various colors.
All-metal lock nuts: An all-metal, one-piece, hex-shaped lock nut with a round collar at its back end. The collar is segmented with opposed slots cut into it above each corner of nut. When the screw or bolt reaches the collar, the slotted portion expands which creates the prevailing torque locking action.

Grade & Material:
Grade A, B, C / Class 6, 8, 10
Carbon steel, Stainless steel, Brass

Finish:
Zinc plated, Plain, Black oxidized, Bright brass
Diameter: #4 - 1 1/2"
