Finish Hex Nuts & Heavy Hex Nuts

• Part No.
• 0108030101
• Manuf. No.
• Standard Pack Quantity
• 1

• For prices and availability please Register or add to cart and submit as enquiry.
• 　
• EACH

Description

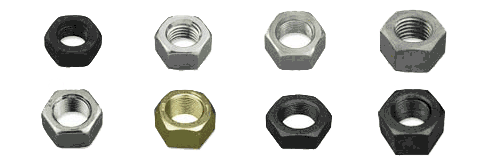

Finish Hex Nuts & Heavy Hex Nuts

DIN934, DIN970, DIN971 / ASME B18.2.2 specifications
Finish hex nuts: A six-sided internally threaded fastener whose thickness is .875 D where D is the nominal nut size and 1.5D is their width across the flats.

Heavy hex nuts: A six-sided internally threaded fastener which is both thicker and wider across the flat than a same-sized finished hex nut. Nuts in size 7/16 & smaller shall be double chamfered. Larger sizes are either double chamfered or chamfered on top with a washer faced bearing surface.

Grade & Material:
Grade 2, 5, 8, & 2H / Class 6, 8, 10
Carbon steel, Stainless steel, Brass

Finish:
Zinc plated, Plain, Black oxidized, Dacrozited, HDG, Bright brass
Diameter: 1/4" - 1 1/2"
