T-Head Bolts & Eyebolts

• Part No.
• 0108020104
• Manuf. No.
• Standard Pack Quantity
• 1

• For prices and availability please Register or add to cart and submit as enquiry.
• 　
• EACH

Description

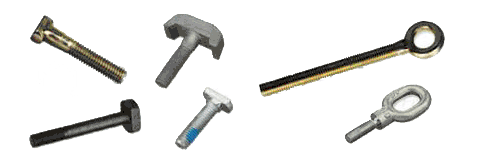

T-Head Bolts & Eyebolts

DIN261, DIN444 / ASME B18.5 & ASME B18.15 specifications
T-head bolts: with externally threaded mechanical device 1/4" diameter or larger, with a rounded top surface and a flat bearing surface.

Eyebolts: A forged bolt without welds, with a head in the form of an open or closed anchor ring. Bolt shall have a unified thread pitch. Shoulder pattern eyebolts shall have an unthreaded shoulder below the anchor ring which is greater in diameter than the threaded shank.

Material & Hardness:
Carbon steel / Rockwell B70-100

Finish:
Zinc plated, Plain, Black oxidized, Dacrotized, HDG
Diameter: T-head bolts: 1/4" - 1" / Eyebolts: 1/4" - 2 1/2"
Length: T-head bolts: 3/8" - 12" / Eyebolts: 2" - 14"
