High Density PE Corrugated Pipe For Drainage

• Part No.
• 0804050101
• Manuf. No.
• Standard Pack Quantity
• 1

• For prices and availability please Register or add to cart and submit as enquiry.
• 　
• EACH

Description

Detailed Product Description

High density PE corrugated pipe for drainage
1. Corrosion resistance
2. Size from 200-800mm
3. Ring stiffness:SN4 and SN8

High density PE corrugated pipe for drainage

Product introduction:

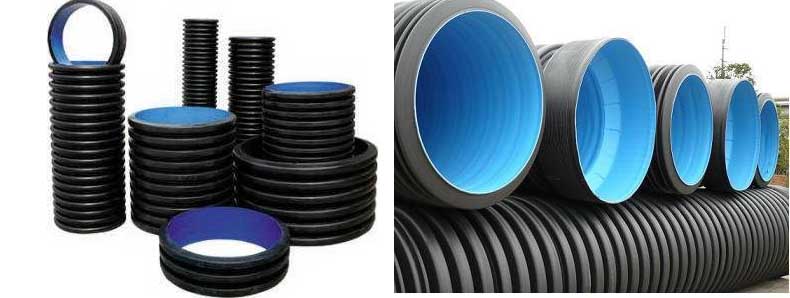

High density polyethylene double wall corrugated pipe
High density polyethylene double wall corrugated pipe is a new type of light-weighed pipes, with smooth inner surface, ladder-shaped corrugated outer surface and an empty layer between double surfaces. With its unique wall structure design, such pipe has advantages of strong ring stiffness, light weight, high pressure resistance, good toughness, anticorrosion, anti-abrasion, convenient and low cost installation and long service life, etc. It is widely used in municipal transforming projects, constructions, agricultural and industrial drainage, agricultural water-saving irrigation, wastewater processing industry, etc. and is the best substitute of traditional concrete pipes, cast iron pipes and other material pipes.

According to different ring stiffness grades, HDPE double wall corrugated pipe falls into S1(ring stiffness≥4KN/square meter) and S2(ring stiffness≥8KN/square meter). Generally speaking, S1 will be selected when it’s buried with dynamic load or in 0.7m~5m underground or while S2 selected when it’s buried without dynamic load or too shallow and too deep. Specifications are as below(nominal inner diameter): 200mm, 225mm, 300mm, 400mm, 500mm, 600mm,700mm and 800mm.

Product characteristics:
1. Unique product structure, thus high pressure resistance
2. Smooth inner surface, thus large flowing amount
3. Convenient pipe connection, perfect sealing, anticorrosion, no leakage, no scaling, no secondary pollution, the ideal environment-friendly pipes.
4. Good flexibility and adjustability to uneven sinking of soil
5. Long service life: Its service life can reach 50 years when buried.
6. light weight: Convenient installation brings lower construction costs and less time.
7. Anti-abrasion property is 3~5 times higher than common steel pipes at a flowing rate of 15 feet per second.

Physical properties:

Items	Technical requirements
Ring stiffness	S1≥4KN/square meter, S2≥8KN/square meter
Impact strength(TIR)	≤10%
Ring flexibility	Test sample should be smooth, no reversed flexure , no crack, no delamination.
Oven test	no air bubble, no delamination, no crack
Creep rate	≤4

Besides HDPE double-wall corrugated pipe, we could also supply PE pipes, PPR pipes, PERT pipes, SRTP pipes, HDPE pipes UHMW PE pipes etc, which can be used in many fields. If you are interested in this product or our any other product, just donot hesitate to let me know, I will be very glad to offer you any further information.
