| Name |
Length |
Diameter |
Efficiency |
Efficiency Beta |
Primary Application |
descripton |
| Inner |
Outer |
50% |
99% |
2 |
20 |
75 |
| P173174 |
10.87" (276 mm) |
1.9" (48 mm) |
3.72" (95 mm) |
|
20 Micron |
|
|
20 Micron |
HYDAC 0500R020BNHC |

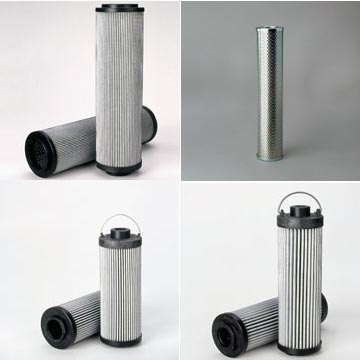

Element assy, Hydac, 20 micron absolute, 43.5 psi bypass,
10.9'' long, temperature range -4F to +212F (-20C to +100C) |
| P173175 |
10.87" (276 mm) |
1.9" (48 mm) |
3.72" (95 mm) |
|
20 Micron |
|
|
20 Micron |
HYDAC 0500R020BNHC |
Element assy, Hydac, 5 micron absolute, 43.5 psi bypass,
13.1'' long, temperature range -4F to +212F (-20C to +100C) |
| P173176 |
13.11" (333 mm) |
2.7" (69 mm) |
4.5" (114 mm) |
|
20 Micron |
|
|
20 Micron |
HYDAC 0660R020BNHC |
Element assy, Hydac, 20 micron absolute, 43.5 psi bypass,
13.1'' long, temperature range -4F to +212F (-20C to +100C) |
| P173178 |
16.22" (412 mm) |
2.7" (69 mm) |
4.5" (114 mm) |
2 Micron |
5 Micron |
2 Micron |
3 Micron |
5 Micron |
HYDAC 0850R005BNHC |
Element assy, Hydac, 5 micron absolute, 43.5 psi bypass,
16.2'' long, temperature range -4F to +212F (-20C to +100C) |
| P173179 |
16.22" (412 mm) |
2.7" (69 mm) |
4.5" (114 mm) |
2 Micron |
10 Micron |
2 Micron |
7 Micron |
10 Micron |
HYDAC 0850R010BNHC |
Element assy, Hydac, 10 micron absolute,43.5 psi bypass,
16.2'' long, temperature range -4F to +212F (-20C to +100C) |
| P173180 |
16.22" (412 mm) |
2.7" (69 mm) |
4.5" (114 mm) |
|
20 Micron |
|
|
20 Micron |
HYDAC 0850R020BNHC |
Element assy, Hydac, 20 micron absolute, 43.5 psi bypass,
16.2'' long, temperature range -4F to +212F (-20C to +100C) |
| P173182 |
14.29" (363 mm) |
3.8" (97 mm) |
5.65" (143 mm) |
|
20 Micron |
|
|
20 Micron |
HYDAC 0950R020BNHC |
Element assy, Hydac, 20 micron absolute, 43.5 psi bypass,
14.3'' long, temperature range -4F to +212F (-20C to +100C) |
| P173185 |
13.78" (350 mm) |
1.77" (45 mm) |
2.83" (72 mm) |
|
|
|
|
|
TAMROCK 04004080 |
Fairey Arlon replacement element,
10 micron, temperature range -4F to +248F (-20C to +120C) |
