Hydraulic Filters P173185--P173200

  • Part No.
  • 06060902105
  • Manuf. No.
  • Standard Pack Quantity
  • 1
  • For prices and availability please Register or add to cart and submit as enquiry.
  • 　
  • EACH

Description

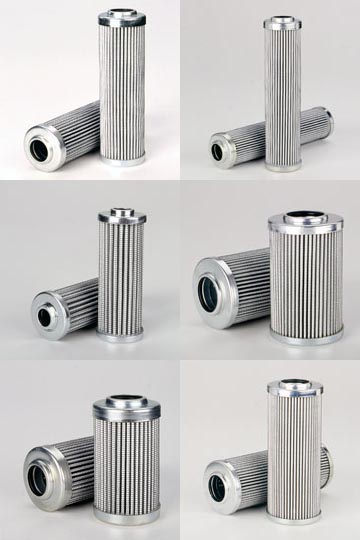

HYD ELEMENT ASSY
Element assy, Hydac, 3 micron absolute, 3.7'' long, temperature range -4F to +212F (-20C to +100C)

Name Length Diameter Efficiency Efficiency Beta Rated Flow descripton
Inner Outer 50% 99% 2 20 75
P173185 3.7" (94 mm) 0.48" (12 mm) 1.38" (35 mm)   3 Micron     3 Micron HYDAC 0030D003BNHC Element assy, Hydac, 3 micron absolute,
3.7'' long, temperature range -4F to +212F (-20C to +100C)
P173188 3.7" (94 mm) 0.48" (12 mm) 1.38" (35 mm)   20 Micron     20 Micron HYDAC 0030D020BNHC Element assy, Hydac, 20 micron absolute,
3.7'' long, temperature range -4F to +212F (-20C to +100C)
P173190 3.7" (94 mm) 0.87" (22 mm) 1.88" (48 mm)           HYDAC 0060D020BNHC Element assy, Hydac, 20 micron absolute,
3.3'' long, temperature range -4F to +212F (-20C to +100C)
P173191 6.02" (94 mm) 0.87" (22 mm) 1.88" (48 mm)   3 Micron     3 Micron HYDAC 0110D003BNHC Element assy, Hydac, 3 micron absolute,
6'' long, temperature range -4F to +212F (-20C to +100C)
P173193 4.53" (115 mm) 1.35" (34 mm) 2.75" (70 mm)   3 Micron     3 Micron HYDAC 0160D003BNHC Element assy, Hydac, 3 micron absolute,
4.5'' long, temperature range -4F to +212F (-20C to +100C)
P173194 4.53" (115 mm) 1.35" (34 mm) 2.75" (70 mm)   20 Micron     20 Micron HYDAC 0160D020BNHC Element assy, Hydac, 20 micron absolute,
4.5'' long, temperature range -4F to +212F (-20C to +100C)
P173195 6.81" (173 mm) 1.35" (34 mm) 2.75" (70 mm)   3 Micron     3 Micron HYDAC 0240D003BNHC Element assy, Hydac, 3 micron absolute,
6.8'' long, temperature range -4F to +212F (-20C to +100C)
P173197 6.83" (162 mm) 1.9" (48 mm) 3.57" (91 mm)   3 Micron     3 Micron HYDAC 0330D003BNHC Element assy, Hydac, 3 micron absolute,
6.4'' long, temperature range -4F to +212F (-20C to +100C)
P173189 3.31" (84 mm) 0.87" (22 mm) 1.88" (48 mm)           HYDAC 0060D003BNHC Element assy, Hydac, 3 micron absolute,
3.3'' long, temperature range -4F to +212F (-20C to +100C)
P173199 12.91" (328 mm) 1.9" (48 mm) 3.57" (91 mm)   3 Micron     3 Micron HYDAC/HYCON 0660D003BNHC Element assy, Hydac, 3 micron absolute,
12.9'' long, temperature range -4F to +212F (-20C to +100C)
P173200 12.91" (328 mm) 1.9" (48 mm) 3.57" (91 mm)   20 Micron     20 Micron HYDAC 0660D020BNHC Element assy, Hydac, 20 micron absolute,
12.9'' long, temperature range -4F to +212F (-20C to +100C)

  • Length
  • 3.7" (94 mm)
  • Inner Diameter:
  • 0.48" (12 mm)
  • Outer Diameter
  • 1.38" (35 mm)
  • Efficiency
  • 99%: 3 Micron
  • Efficiency Beta
  • 75: 3 Micron
  • Primary Application
  • HYDAC 0030D003BNHC
  • Product Group
  • FH
