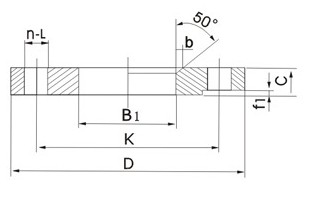

HG20593-97 PN1.6Mpa(16bar) (125--600) mm

Path mm	Outside Diameter A1		Diameter					Flange thickness C	Classic Flange B1		Break width b	Flange theoretical weight kg
Path mm	A	B	Connection size Flange diameter	Center bolt hole diameter K	Bolt hole diameter L	The number of bolt holes N	Screw thread Th	Flange thickness C	A	B	Break width b	Flange theoretical weight kg
125	139.7	133	250	210	18	8	M16	22	141.5	135	6	5.65
150	168.3	159	285	240	22	8	M20	24	170.5	161	6	7.61
200	219.2	219	340	295	22	12	M20	26	221.5	222	8	9.69
250	273	273	405	355	26	12	M24	28	276.5	276	10	13.8
300	323.9	325	460	410	26	12	M24	32	327.5	328	11	18.9
350	355.6	377	520	470	26	16	M24	35	359.5	381	12	24.7
400	406.4	426	580	525	30	16	M27	38	411	430	12	32.1
450	457	480	640	585	30	20	M27	42	462	485	12	40.5
500	508	530	715	650	33	20	M30X2	46	513.5	535	12	57.6
600	610	630	840	770	33	20	M30X2	52	616.5	636	12	88.2
