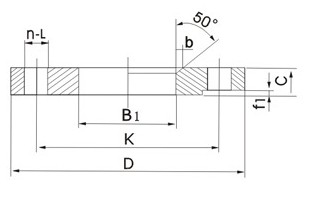

HG20593-97 PN1.6Mpa(16bar) (10--100) mm

Path mm	Outside Diameter A1		Diameter					Flange thickness C	Classic Flange B1		Break width b	Flange theoretical weight kg
Path mm	A	B	Connection size Flange diameter	Center bolt hole diameter K	Bolt hole diameter L	The number of bolt holes N	Screw thread Th	Flange thickness C	A	B	Break width b	Flange theoretical weight kg
10	17.2	14	90	60	14	4	M12	14	18	15	4	0.61
15	21.3	18	95	65	14	4	M12	14	22	19	4	0.68
20	26.9	25	105	75	14	4	M12	16	27.5	26	4	0.94
25	33.7	32	115	85	14	4	M12	16	34.5	33	5	1.12
32	42.4	38	140	100	18	4	M16	18	43.5	39	5	1.86
40	48.3	45	150	110	18	4	M16	18	49.5	46	5	2.12
50	60.3	57	165	125	18	4	M16	20	61.5	59	5	2.77
65	76.1	76	185	145	18	4	M16	20	77.5	78	6	3.31
80	88.9	89	200	160	18	8	M16	20	90.5	91	6	3.59
100	114.3	108	220	180	18	8	M16	22	116	110	6	4.57
