HG20593-97 PN1.0Mpa(10bar) (125-600)mm

  • Part No.
  • 0301060201
  • Manuf. No.
  • Standard Pack Quantity
  • 1
  • For prices and availability please Register or add to cart and submit as enquiry.
  • 　
  • EACH

Description

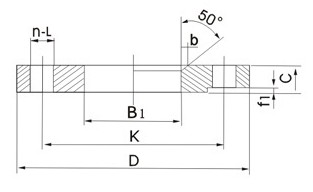

Path mm Outside Diameter A1 Diameter Flange thickness C Classic Flange B1 Flange theoretical weight kg
A B Connection size Flange diameter Center bolt hole diameter K Bolt hole diameter L The number of bolt holes N Screw thread Th A B
125 139.7 133 250 210 18 8 M16 22 141.5 135 5.65
150 168.3 159 285 240 22 8 M20 24 170.5 161 7.61
200 219.2 219 340 295 22 8 M20 24 221.5 222 9.24
250 273 273 395 350 22 12 M20 26 276.5 276 11.9
300 323.9 325 445 400 22 12 M20 28 327.5 328 14.8
350 355.6 377 505 460 22 16 M20 30 359.5 381 18.9
400 406.4 426 565 515 26 16 M24 32 411 430 24.4
450 457 480 615 565 26 20 M24 35 462 485 20.5
500 508 530 670 620 26 20 m24 38 513.5 535 34.9
600 610 630 780 725 30 20 M27 42 616.5 636 33.7
