HG20593-97 PNO.6Mpa(6bar) (450-2000)mm

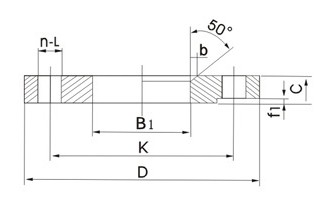

Path mm	Outside Diameter A1		Diameter					Flange thickness C	Classic Flange B1		Break width b	Flange theoretical weight kg
Path mm	A	B	Connection size Flange diameter	Center bolt hole diameter K	Bolt hole diameter L	The number of bolt holes N	Screw thread Th	Flange thickness C	A	B	Break width b	Flange theoretical weight kg
450	457	480	595	550	22	16	M20	30	462	485	-	20.5
500	508	530	645	600	22	20	m20	32	513.5	535	-	23.7
600	610	630	755	705	26	20	m24	36	616.5	636	-	33.7
700	711	720	860	810	26	24	M24	40	715	724	-	49.1
800	813	820	975	920	30	24	M27	44	817	824	-	67.8
900	914	920	1075	1020	30	24	M27	48	918	924	-	82.9
1000	1016	1020	1175	1120	30	28	M27	52	1020	1024	-	98.3
1200	1219	1220	1405	1340	33	32	M30X2	60	1223	1224	-	163.1
1400	1422	1420	1630	1560	36	36	M33X2	68	1426	1424	-	244.1
1600	1626	1620	1830	1760	36	40	M33X2	76	1630	1624	-	309.0
1800	1829	1820	2045	1970	39	44	M36X3	84	1833	1824	17	408.0
2000	2032	2020	2265	2180	42	48	M39X3	92	2036	2024	18	538.0
