HG20595-97 PN4.0Mpa(40bar) 100mm

  • Part No.
  • 0103010309
  • Manuf. No.
  • Standard Pack Quantity
  • 1
  • For prices and availability please Register or add to cart and submit as enquiry.
  • 　
  • EACH

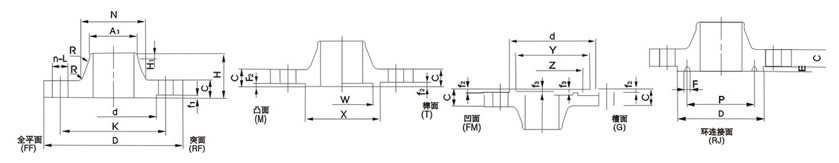

Description

  • Path mm
  • 100
  • Outside Diameter A1 mm
  • A: 114.3 ; B: 108
  • Flange Diameter D mm
  • 235
  • Center Bolt Hole Diameter K
  • 190
  • Bolt Hole Diameter L mm
  • 22
  • The Number Of Bolt Holes n
  • 8
  • Screw Thread Th
  • M20
  • Flange Thickness C mm
  • 24
  • Flange Diameter mm
  • N(A: 134 ; B: 134 ) S:6.3 ;H1: 12 ; R: 6
  • Flange Height H mm
  • 65
  • Flange Theoretical Weight kg
  • 7.01
