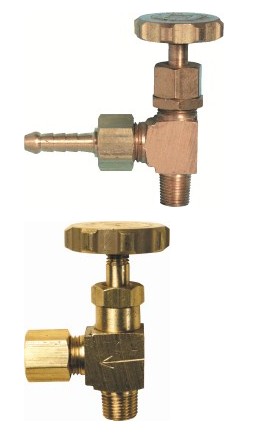

Needle Valves — Angle & Barbed — Screwed — Brass

• Part No.
• 0104110100
• Manuf. No.
• Standard Pack Quantity
• 1

• For prices and availability please Register or add to cart and submit as enquiry.
• 　
• EACH

Description

Features

• Operating Temperature: 0° to 90°C
• Media: Air, non potable water, petrol and oil
• Maximum Pressure: 2600kPa
• Thread Type: BSPT AS1722.1

Applications
• Suitable for industrial, domestic, pneumatic and hydraulic installations

Model Description

Name	Std Pk	Unit	Size inch	Size mm	Type	Thread Type
VALVE NEEDLE ANG BARB NVP40 3/16TX1/8BSP	1	EACH	3/16 x 1/8	4.7 x 6	Barbed	BSP
VALVE NEEDLE ANG BARB NVP40 1/4"TX1/8BSP	1	EACH	1/4 x 1/8	6.3x 6	Barbed	BSP
VALVE NEEDLE ANG BARB NVP40 5/16TX1/8BSP	1	EACH	5/16x1/8	7.9x 6	Barbed	BSP
VALVE NEEDLE ANG BARB NVP40 3/8"TX1/4BSP	1	EACH	3/8"x1/4	9.5x 8	Barbed	BSP
VALVE NEEDLE ANG COMP NV41 3/16TX1/8BSP	1	EACH	3/16 x 1/8	4.7 x 6	Angle	BSP
VALVE NEEDLE ANG COMP NV41 1/4"TX1/8BSP	1	EACH	1/4 x 1/8	6.3x 6	Angle	BSP
VALVE NEEDLE ANG COMP NV41 5/16TX1/8BSP	1	EACH	5/16x1/8	7.9x 6	Angle	BSP
VALVE NEEDLE ANG COMP NV41 3/8"TX1/4BSP	1	EACH	3/8"x1/4	9.5x 8	Angle	BSP
