Screwed — Bronze-T501

• Part No.
• 0104090102
• Manuf. No.
• Standard Pack Quantity
• 1

• For prices and availability please Register or add to cart and submit as enquiry.
• 　
• EACH

Description

Features

T501
• Applications: Unfired boilers and pressure vessel rated, commercial laundries and steam services within parameters of specifications
• Bronze body inside screw, rising spindle
• Union bonnet - suitable for renewable Stainless Steel seats and disc
• Connections are Female BSPT
• Rated 40 Bar (40,000kPa) CWP at 100°C and steam to 17.5 Bar (17,500kPa) at 260°C
• Robust range of bronze valves
• Access to repair or replace Stainless Steel (SS) seat and disc

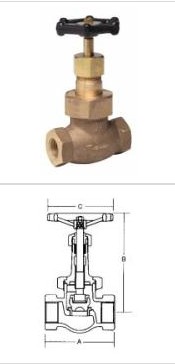

Name	Std Pk	A mm	B mm	C mm	Mass kg	Model	Disc Type	Size mm
VALVE GLOBE BRZ FIG501 SCREWED 10MM	12	76	115	65	1.0	T501-010	SS Seat	10
VALVE GLOBE BRZ FIG501 SCREWED 15MM	12	76	115	65	1.0	T501-015	SS Seat	15
VALVE GLOBE BRZ FIG501 SCREWED 20MM	1	88	125	65	1.4	T501-020	SS Seat	20
VALVE GLOBE BRZ FIG501 SCREWED 25MM	10	105	136	90	2.1	T501-025	SS Seat	25
VALVE GLOBE BRZ FIG501 SCREWED 32MM	1	120	160	90	3.1	T501-032	SS Seat	32
VALVE GLOBE BRZ FIG501 SCREWED 40MM	5	140	190	120	4.8	T501-040	SS Seat	40
VALVE GLOBE BRZ FIG501 SCREWED 50MM	3	175	190	120	7.5	T501-050	SS Seat	50
