Screwed — Bronze-T1M

• Part No.
• 0104090100
• Manuf. No.
• Standard Pack Quantity
• 1

• For prices and availability please Register or add to cart and submit as enquiry.
• 　
• EACH

Description

Features

T1M
• Applications: General industries, canteen equipment, limited hospital plant rooms, instrumentation, building services and commercial heating systems
• Bronze body globe valve; inside screw non-rising stem with Female BSPT connections
• Mitred disc and screwed bonnet
• Rated 24 Bar (2400kPa) CWP at 100°C
• Ideal for throttling for general purpose applications also in saturated steam applications up to 1400kPa at 180°C
• Medium pressure ratings
• DZR body
• Screwed bonnet
Model Description

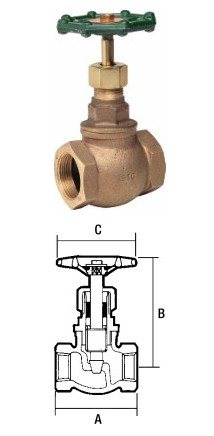

Name	A mm	B mm	C mm	Mass kg	Model	Disc Type	Size mm
VALVE GLOBE BRZ PEGLER 5 SCD 15MM	56	111	83	0.1	T1M-015	Mitred	15
VALVE GLOBE BRZ PEGLER 5 SCD 20MM	59	95	65	0.6	T1M-020	Mitred	20
VALVE GLOBE BRZ PEGLER 5 SCD 25MM	73	97	85	0.85	T1M-025	Mitred	25
VALVE GLOBE BRZ PEGLER 5 SCD 32MM	87	133	90	1.60	T1M-032	Mitred	32
VALVE GLOBE BRZ PEGLER 5 SCD 40MM	92	152	90	2.0	T1M-040	Mitred	40
VALVE GLOBE BRZ PEGLER 5 SCD 50MM	114	185	90	3.1	T1M-050	Mitred	50
