Flanged — Stainless Steel

• Part No.
• 0104080105
• Manuf. No.
• Standard Pack Quantity
• 1

• For prices and availability please Register or add to cart and submit as enquiry.
• 　
• EACH

Description

Features

• Stainless Steel Grade 316
• Test pressure: Shell - 450psi; Seat - 315psi

Specifications
• ANSI 150

Model Description

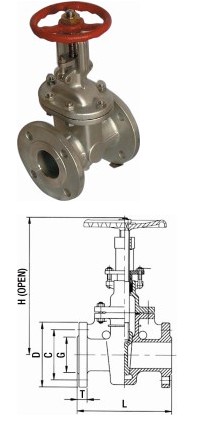

Name	Std Pk	unit	C mm	D mm	G mm	H mm	L mm	NB mm	Size inch	T mm
VALVE GATE S/S ANSI 150 FLANGED 50NB	1	EACH	120.5	152	92	320	178	50	2	15.9
VALVE GATE S/S ANSI 150 FLANGED 65NB	1	EACH	139.5	178	105	375	190	65	2 1/2	17.5
VALVE GATE S/S ANSI 150 FLANGED 80NB	1	EACH	152.5	190	127	445	203	80	3	19.1
VALVE GATE S/S ANSI 150 FLANGED 100NB	1	EACH	190.5	229	157	523	229	100	4	23.9
