Screwed — Stainless Steel

• Part No.
• 0104080103
• Manuf. No.
• Standard Pack Quantity
• 1

• For prices and availability please Register or add to cart and submit as enquiry.
• 　
• EACH

Description

Features

• Corrosion resistant, Stainless Steel Grade 316 body and trim, inside screw rising stem, screwed bonnet, cast-iron handwheel and BSPT

Model Description

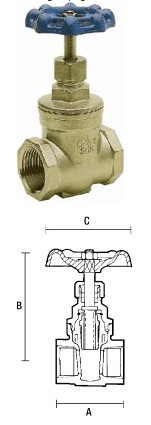

Name	Std Pk	unit	A mm	B mm	C mm	Mass kg	Size mm
VALVE GATE SS316 200 SCREWED15MM	1	EACH	54	93	60	0.39	15
VALVE GATE SS316 200 SCREWED 20MM	1	EACH	58	103	70	0.48	20
VALVE GATE SS316 200 SCREWED 25MM	1	EACH	65	112	70	0.66	25
VALVE GATE SS316 200 SCREWED 32MM	1	EACH	74	125	80	1.00	32
VALVE GATE SS316 200 SCREWED 40MM	1	EACH	78	145	90	1.42	40
VALVE GATE SS316 200 SCREWED 50MM	1	EACH	87	170	100	2.11	50
