Heavy Pattern — Screwed — Bronze

• Part No.
• 0104080102
• Manuf. No.
• Standard Pack Quantity
• 1

• For prices and availability please Register or add to cart and submit as enquiry.
• 　
• EACH

Description

Features
• Heavy pattern bronze non-rising spindle ends screwed
• Female BSP suitable for hot and cold water and could be considered for oil or gas where specifications permit
• Rated 35 Bar (3500kPa) CWP to 100°C
• Not recommended for throttling - only fully opened or fully closed
• Body Casting: Gunmetal (bronze), Internals: DZR components
• Manufacturer marking on body
• Full bore
• Anti-corrosive to salt water

Applications
• Suitable for use with hydraulic water including potable water, commercial heating tanks and general industries

Model Description

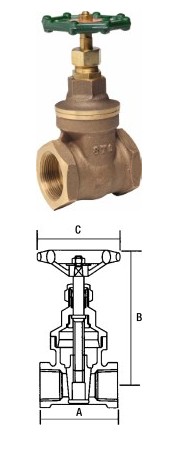

Name	Std Pk	unit	A mm	B mm	C mm	Mass kg	Model	Size mm
VALVE GATE BRAEMAR BRONZE T59 SCR 15MM	1	EACH	60	111	65	0.70	T59-015	15
VALVE GATE BRAEMAR BRONZE T59 SCR 20MM	1	EACH	60	111	65	0.80	T59-020	20
VALVE GATE BRAEMAR BRONZE T59 SCR 25MM	1	EACH	66	125	90	1.2	T59-025	25
VALVE GATE BRAEMAR BRONZE T59 SCR 32MM	1	EACH	76	144	90	1.50	T59-032	32
VALVE GATE BRAEMAR BRONZE T59 SCR 40MM	1	EACH	90	162	90	2.3	T59-040	40
VALVE GATE BRAEMAR BRONZE T59 SCR 50MM	1	EACH	98	190	120	3.5	T59-050	50
VALVE GATE BRAEMAR BRONZE T59 SCR 65MM	1	EACH	114	241	150	6.0	T59-065	65
VALVE GATE BRAEMAR BRONZE T59 SCR 50MM	1	EACH	138	260	150	8.3	T59-080	80
