Duo Check — Wafer Type — Cast Iron

• Part No.
• 0104050103
• Manuf. No.
• Standard Pack Quantity
• 1

• For prices and availability please Register or add to cart and submit as enquiry.
• 　
• EACH

Description

Features

• Twinfold dual plate wafer type, cast iron body, Stainless Steel Grade 304 plates, EPDM seat, Stainless Steel Grade 316 spring and pins

Specifications

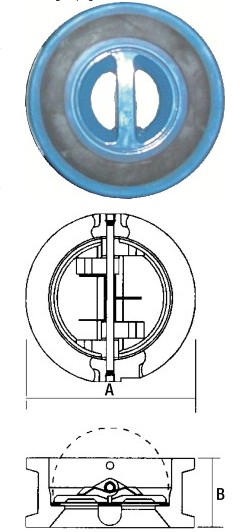

• Table E

Model Description

Name	Std Pk	unit	A mm	B mm	Mass kg	Size mm
VALVE CHECK DUAL FLAP CI 430 WAFER 50MM	1	EACH	98	54	2	50
VALVE CHECK DUAL FLAP CI 430 WAFER 65MM	1	EACH	124	54	3	65
VALVE CHECK DUAL FLAP CI 430 WAFER 80MM	1	EACH	130	57	3.5	80
VALVE CHECK DUAL FLAP CI 430 WAFER 100MM	1	EACH	162	64	5	100
VALVE CHECK DUAL FLAP CI 430 WAFER 125MM	1	EACH	194	70	7	125
VALVE CHECK DUAL FLAP CI 430 WAFER 150MM	1	EACH	216	76	9	150
VALVE CHECK DUAL FLAP CI 430 WAFER 200MM	1	EACH	273	95	19	200
VALVE CHECK DUAL FLAP CI 430 WAFER 250MM	1	EACH	337	108	34	250
VALVE CHECK DUAL FLAP CI 430 WAFER 300MM	1	EACH	410	143	59	300
