Swing Type — Flanged — Cast Iron

• Part No.
• 0104050102
• Manuf. No.
• Standard Pack Quantity
• 1

• For prices and availability please Register or add to cart and submit as enquiry.
• 　
• EACH

Description

Features

• Swing disc type, cast iron body and cover, bronze trim, Stainless Steel hinge
• Bolted cover

Specifications
• Table E

Model Description

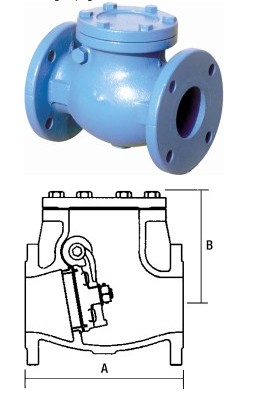

Name	Std Pk	unit	A mm	B mm	Mass kg	Size mm
VALVE CHECK SWING CI 404 FLG DRL E 50MM	1	EACH	203	111	10	50
VALVE CHECK SWING CI 404 FLG DRL E 65MM	1	EACH	216	127	12	65
VALVE CHECK SWING CI 404 FLG DRL E 80MM	1	EACH	241	139	16	80
VALVE CHECK SWING CI 404 FLG DRL E 100MM	1	EACH	292	158	25	100
VALVE CHECK SWING CI 404 FLG DRL E 150MM	1	EACH	356	203	50	150
VALVE CHECK SWING CI 404 FLG DRL E 200MM	1	EACH	495	246	87	200
VALVE CHECK SWING CI 404 FLG DRL E 250MM	1	EACH	622	282	144	250
