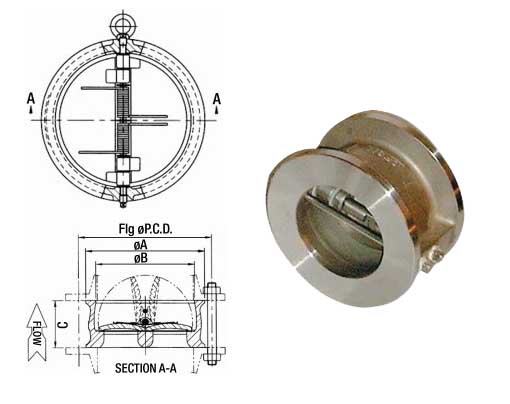

Duo Check — Wafer Type — Stainless Steel

• Part No.
• 0104050101
• Manuf. No.
• Standard Pack Quantity
• 1

• For prices and availability please Register or add to cart and submit as enquiry.
• 　
• EACH

Description

Features

• Corrosion resistant, swing disc type, Stainless Steel Grade 316 body and trim, screwed cover and BSPT

Model Description

Name	Std Pk	unit	A inch	B inch	C inch	Mass kg	NB mm	Bolt Circle Dia inch	Size inch
VALVE CHECK DUAL FLAP S/S WAFER 50MM	1	EACH	4.12	2.36	2.37	2.5	50	4.75	2
VALVE CHECK DUAL FLAP S/S WAFER 65MM	1	EACH	4.87	2.87	2.62	3.0	65	5.5	2 1/2
VALVE CHECK DUAL FLAP S/S WAFER 80MM	1	EACH	5.37	3.5	2.87	4.5	80	6	3
VALVE CHECK DUAL FLAP S/S WAFER 100MM	1	EACH	6.87	4.49	2.87	8.0	100	7.5	4
VALVE CHECK DUAL FLAP S/S WAFER 150MM	1	EACH	8.75	6.61	3.87	13.0	150	9.5	6
VALVE CHECK DUAL FLAP S/S WAFER 200MM	1	EACH	11	8.62	5.00	28.0	200	11.75	8
