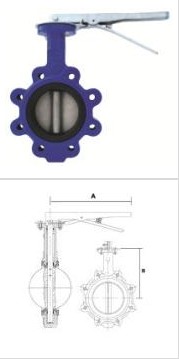

Epoxy Coated — Cast Iron VALVE BUTTERFLY LUGGED LEVER EPDM

• Part No.
• 0104040101
• Manuf. No.
• Standard Pack Quantity
• 1

Description

Features

• Soft seal valve with low operation torque requirements to provide a tight seal
• Minimal operational wear and extended service life can provide long term benefits to end users
• The epoxy coated body and the hot dipped galvanised lever make this valve a stand-out for general applications including those in harsh corrosive environments
• EPDM is the standard seat provided with the JBS051 and JBS052
• In all cases please refer to compatibility of components with the medium, or when the intended application approaches the maximum pressures and temperatures of the EPDM
• Temperature limitations are -20°C to +120°C
• Stainless Steel Grade 316 disc and stem
• 16 Bar rating (including dead end service)

Note: Other seats available on request

Applications

• General use including hot and cold water, animal oils, salts and oxidising chemicals
