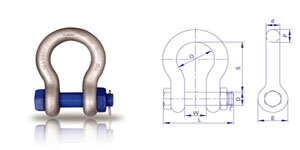

BX BOW SHACKLE- S(6)(0.5T)

• Part No.
• 0202010517
• Manuf. No.
• Standard Pack Quantity
• 1

Description

Working load T8 grade: 2t-175t；S6 grade:0.5t-1250t.
T8 grade is high quality structural alloy steel;S6 grade is structural alloy steel.
The maximum testing load of 0.5t-150t shackle is 2 times of the working load,
the maximum testing load 200t of 500t shackle is 1.5 times of the working load.
The maximum testing load of 800t-12500t shackle is 1.33 times of the working load, the minimum breaking load is 1.5 times of the working load.
About the bearing capacity of 2t-80t,T8 grade is 40%-100% up higher than the S6 grade in the same dimension.
About the bearing capacity of 110t,T8 grade is 16%-29% up higher than the S6 grade in the same dimension.
The shackle of 0.5t-175t in accordance with the technical requirements and testing methods of ISO2415-2004.
We designed the 200t-1250t according to JB8112-1999 and the preformance met or exceed the requirements in ASME.B.30.26
