HIGH STRENGTH ROUND LINK CHAIN FOR MINING-1450 kn

  • Part No.
  • 0203030123
  • Manuf. No.
  • Standard Pack Quantity
  • 1
  • For prices and availability please Register or add to cart and submit as enquiry.
  • 　
  • EACH

Description

Standard:National Standard GB/T12718-2001。

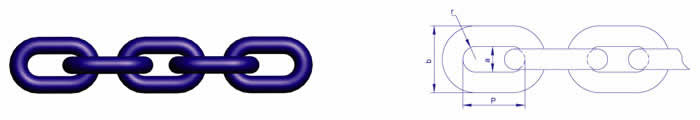

  • The Diametre Of The Finished Link(D)
  • Size:34 mm ; Terminal Windage:±1.0
  • Pitch (P)
  • Size:126 mm ; Terminal Windage:±1.2
  • Width
  • Inside a min:38 mm ; Outside b min: 109 mm
  • Arc Radius (r)
  • Size:52 mm ; Terminal Windage:+2.0
  • The Welding Point
  • Diameter d1max:36.5 mm ; Length e:23.8 mm
  • Mass in kg/m ≈
  • 22.7 kg/m
  • Proof Test Load
  • 1450 kn
  • Maximum the Test Road
  • 1.9 %
  • Minimum breaking force
  • 1810 kn
  • Minimum Gross Breaking Load
  • 12 %
  • Quality Class
  • D
