HIGH STRENGTH ROUND LINK CHAIN FOR MINING-900 kn

  • Part No.
  • 0203030119
  • Manuf. No.
  • Standard Pack Quantity
  • 1
  • For prices and availability please Register or add to cart and submit as enquiry.
  • 　
  • EACH

Description

Standard:National Standard GB/T12718-2001。

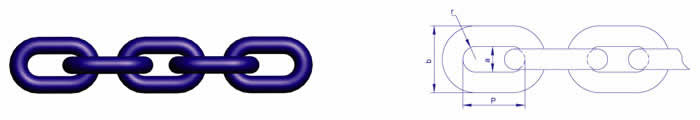

  • The Diametre Of The Finished Link(D)
  • Size:30 mm ; Terminal Windage:±0.9
  • Pitch (P)
  • Size:108 mm ; Terminal Windage:±1.0
  • Width
  • Inside a min:34 mm ; Outside b min: 98 mm
  • Arc Radius (r)
  • Size:46 mm ; Terminal Windage:+2.0
  • The Welding Point
  • Diameter d1max:32.5 mm ; Length e:21 mm
  • Mass in kg/m ≈
  • 18.0 kg/m
  • Proof Test Load
  • 900 kn
  • Maximum the Test Road
  • 1.6 %
  • Minimum breaking force
  • 1130 kn
  • Minimum Gross Breaking Load
  • 12 %
  • Quality Class
  • C
