HIGH STRENGTH ROUND LINK CHAIN FOR MINING-610 kn

  • Part No.
  • 0203030111
  • Manuf. No.
  • Standard Pack Quantity
  • 1
  • For prices and availability please Register or add to cart and submit as enquiry.
  • 　
  • EACH

Description

Standard:National Standard GB/T12718-2001。

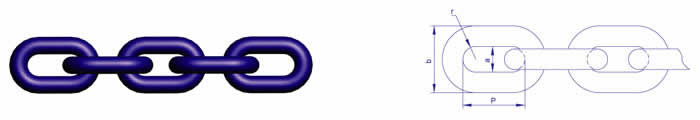

  • The Diametre Of The Finished Link(D)
  • Size:22 mm ; Terminal Windage:±0.7
  • Pitch (P)
  • Size:86 mm ; Terminal Windage:±0.9
  • Width
  • Inside a min:26 mm ; Outside b min: 74 mm
  • Arc Radius (r)
  • Size:34 mm ; Terminal Windage:+2.0
  • The Welding Point
  • Diameter d1max:23.5 mm ; Length e:15.5 mm
  • Mass in kg/m ≈
  • 9.5 kg/m
  • Proof Test Load
  • 610 kn
  • Maximum the Test Road
  • 1.9 %
  • Minimum breaking force
  • 760 kn
  • Minimum Gross Breaking Load
  • 12 %
  • Quality Class
  • C
