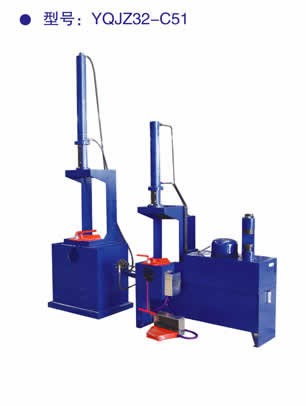

Hydraulic Steel Wire Rope Sling Spliced Machine Set-YQJZ32-C51

• Part No.
• 0210030101
• Manuf. No.
• Standard Pack Quantity
• 1

• For prices and availability please Register or add to cart and submit as enquiry.
• 　
• EACH

Description

Spliced machine is a multi-functional and assembly machine, used for wire rope cutting, splicing, could splice 10mm-80mm diameter wire rope.
Different size wire rope splicing only need change to the suitable splice needle.

Model of Spliced machine	YQJZ32-C32	YQJZ32-C51	YQJZ32-C80
Scope of the rope splicing mm	Φ10～Φ32	Φ10～51	Φ10～Φ80
Scope of the rope cutting mm	Φ10～Φ32	Φ10～Φ32	Φ10～Φ32
Scope of the rope lopping mm	≤Φ10	≤Φ10	≤Φ10
Scope of the rope plastic mm	Φ10～Φ32	Φ10～Φ32	Φ10～Φ32
Power of machine kw	4	4	≤
Voltage v	380V	380V	380V
Frequency hz	50Hz	50Hz	50Hz
Length x Width x Height mm	1270×630×2170	3120×660×3100	11150×2000×2900
Weight kg	502	777	2900
