ROTATING CRANE HOOK

• Part No.
• 0208070107
• Manuf. No.
• Standard Pack Quantity
• 1

• For prices and availability please Register or add to cart and submit as enquiry.
• 　
• EACH

Description

1.Lifting Together With Beam And Travelling Crane.
2.The Proof Load Is 2 Times Working Load Limit,The Breaking Load Is 4 Times Working Load Limit.

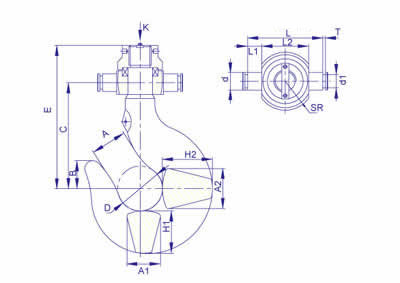

WLL t	A mm	B mm	C mm	D mm	E mm	A1 mm	A2 mm	H1 mm	H2 mm	L mm	L1 mm	L2 mm	HOOK NO.	WORKING LEVEL
16	90	71	340	112	494	85	90	106	125	250	21	165	10#	M5
20	100	80.5	350	125	504	95	100	118	140	270	25	172	12#	M5
25	112	90	370	140	526	106	112	132	160	280	31	185	16#	M5
32	160	125	480	200	643	150	180	190	224	337	64	210	32#	M7
40	160	125	490	200	650	150	180	190	224	408	65	230	32#	M6
50	180	140	525	224	695	170	200	212	250	440	72	254	40#	M6
63	180	140	530	224	717	170	200	212	250	466	84	255	40#	M5
80	180	140	550	224	725	170	200	212	250	524	85	290	40#	M4
100	280	225	886	355	1197	265	315	335	400	644	120	330	特制	M4
