TURN HOOKS

• Part No.
• 0208070106
• Manuf. No.
• Standard Pack Quantity
• 1

• For prices and availability please Register or add to cart and submit as enquiry.
• 　
• EACH

Description

1.For Lifting And Turn Circinal Steel And Steel Tube.
2.The Working Load Limited Is Applied In 1.5 Times.

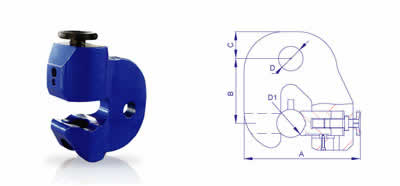

Size mm	WLL t	A mm	B mm	C mm	D mm	D1 mm	WEIGHT kg
Φ25	1.5	140	78	28	Φ21	Φ25	3.2
Φ28	3	171	80	30	Φ21	Φ28	8.7
Φ33.7	3	159	80	30	Φ28	Φ33.7	4.7
Φ38	0.5	153	117	22	Φ18	Φ39	3.5
Φ38.5	3	172.5	75	30	Φ28	Φ38.5	8.3
Φ51	3	207	121	30	Φ28	Φ51.5	10.1
Φ51.5	1.5	220	166	26	Φ25	Φ51.5	4.8
Φ57.2	7.5	237	132.5	50	Φ50	Φ57.2	24
Φ60.5	1.5	237	137	55	Φ50	Φ60.5	24
Φ63.5	1	252	220	40	Φ35	Φ63.5	19.1
Φ63.5	2.5	223	170	40	Φ30	Φ64	20
Φ76.2	4	258	140	40	Φ35	Φ76.2	25
Φ70	2	274	270	40	Φ35	Φ70	5.5
Φ70.5	2	217	97	34	Φ25	Φ70.5	13.7
