SWIVELS

• Part No.
• 0208070105
• Manuf. No.
• Standard Pack Quantity
• 1

• For prices and availability please Register or add to cart and submit as enquiry.
• 　
• EACH

Description

1.For Special Lifting.
2.Capacity Range:0.45T-20T.
3.2 Times Wll=Proof Load, 6 Times Wll=Minimum Breaking Strength

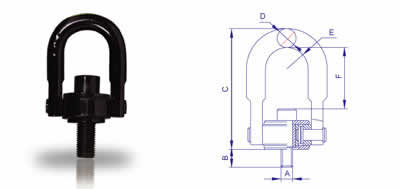

WLL t	Breaking Strength t	A mm	B mm	C mm	D mm	E mm	F mm	WEIGHT kg
0.45	2.7	M10	17	69.6	11	11.8	28	0.2
1	6	M12	19	121.2	19	22.4	61.7	1.1
1.75	10.5	M16	24	124.2	20	22.4	55.7	1.2
2.2	13.2	M20	30	127.2	24	22.4	49.7	1.6
2.7	16.2	M20	30	168.8	27	35.1	55.4	3.3
3.5	21	M24	34	168.8	27	35.1	59.4	3.4
4.2	25.2	M30	54	168.8	27	35.1	69.4	3.8
7	42	M30	66	237.8	38	44.5	69.4	11.8
11	66	M36	69	319.3	48	57.2	124.8	20.5
12.5	75	M42	79	337.5	50	57.2	129	22.1
13.5	81	M48	79	337.5	50	57.2	135	22.8
15	90	M52	85	370	52	65	142	31.5
17	102	M56	85	394	55	65	147	35
20	120	M64	94	420	62	72	152	47.6
