HOIST LINK FOR ELECTRIC MOTOR

• Part No.
• 0208070104
• Manuf. No.
• Standard Pack Quantity
• 1

• For prices and availability please Register or add to cart and submit as enquiry.
• 　
• EACH

Description

1.Application :Lifting And Installation Of Large-Size Elebtric Motors The Rated Load Means The Maximum Weight Whichbe Sustained .
2.y Double Links With The Included Angle Of 90O The Two Legs.
3.The Proof Load Is 2 Times Working Load Limit,The Breaking Load Is 4 Times Working Load Limit.

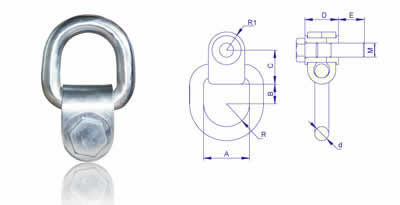

SIZE t	WLL mm	A mm	B mm	C mm	D mm	R mm	E mm	M mm	R1 mm	WEIGHT kg
DJDH(6-8)	6-8	98	42	74.5	72	49	55	M30	39	6.51
DJDH(6-10)	6-10	98	42	77.5	72	49	55	M36	44	6.82
