SOLID THIMBLE

• Part No.
• 0208070102
• Manuf. No.
• Standard Pack Quantity
• 1

• For prices and availability please Register or add to cart and submit as enquiry.
• 　
• EACH

Description

1.Match In Pressed Wire Slings To Protect The Wirerope.
2.Size 8-60Mm.
3.The Thimbles Should Not Be Transfigured When It Is Tested With Two Times Of It'S Working Load Limit.
4.The Require Of Using And Notes.Reference GB/75974.2-2006 1670Mpa.

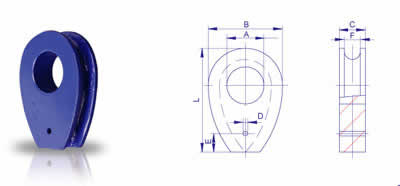

SIZE mm	F mm	C mm	A mm	B mm	L mm	D mm	E mm	WEIGHT kg
8	8.6	14	20	40	56	5	12	0.08
10	10.8	17	25	50	70	5	12	0.17
12	13	21	30	60	84	5	15	0.32
14	15.1	24	35	70	98	5	20	0.50
16	17.2	28	40	80	112	5	20	0.78
18	19.4	31	45	90	126	5	20	1.14
20	21.5	35	50	100	140	10	30	1.41
22	24	38	55	110	154	10	30	1.96
24	26	42	60	120	168	10	30	2.41
26	28	45	65	130	182	10	30	3.46
28	30.1	49	70	140	196	10	30	4.30
32	34.4	56	80	160	224	10	30	6.46
36	39	63	90	180	252	10	30	9.77
40	43	70	100	200	280	10	30	12.94
44	47.3	77	110	220	308	15	45	17.02
48	51.6	84	120	240	336	15	45	22.75
52	56	91	130	260	364	15	45	28.41
56	60.2	98	140	280	392	15	45	35.56
60	64.5	105	150	300	420	15	45	48.35
