1.Cannect Fastness And Steel Wire Rope.
2.Rope Range:6-52Mm.
3.2 Times Wll=Proof Load,4 Times Wll=Minimum Breaking Stewngth.
4.Please Reference Gb5973-2006
5.Suitable For Wire Rope Is 1670Mpa.

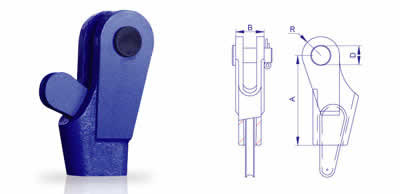

SIZE mm | WLL kn | A mm | B mm | D mm | R mm | OPENNING mm | WEIGHT kg |
6 | 10 | 90 | 29 | 16 | 16 | 4x24 | 0.56 |
8 | 10 | 100 | 31 | 18 | 25 | 4x26 | 0.77 |
10 | 15 | 120 | 38 | 20 | 25 | 5x30 | 1.01 |
12 | 20 | 155 | 44 | 25 | 30 | 5x35 | 1.70 |
14 | 25 | 185 | 51 | 30 | 35 | 6.3x45 | 2.34 |
16 | 30 | 195 | 60 | 34 | 42 | 6.3x50 | 3.27 |
18 | 35 | 195 | 64 | 36 | 44 | 6.3x50 | 4.00 |
20 | 50 | 220 | 72 | 38 | 50 | 6.3x50 | 5.45 |
22 | 55 | 240 | 76 | 40 | 52 | 6.3x55 | 6.37 |
24 | 65 | 260 | 83 | 50 | 60 | 6.3x65 | 8.32 |
26 | 75 | 280 | 92 | 55 | 65 | 8x75 | 10.16 |
28 | 95 | 305 | 94 | 55 | 70 | 8x75 | 13.94 |
32 | 120 | 360 | 110 | 65 | 77 | 8x90 | 17.94 |
36 | 155 | 390 | 122 | 70 | 85 | 8x95 | 23.03 |
40 | 200 | 470 | 145 | 75 | 90 | 8x100 | 32.35 |
42 | 220 | 480 | 160 | 82 | 96 | 10x100 | 76.00 |
44 | 240 | 520 | 164 | 85 | 105 | 10x100 | 85.50 |
48 | 280 | 530 | 174 | 90 | 110 | 10x100 | 95.00 |
52 | 320 | 570 | 184 | 90 | 110 | 10x100 | 128.00 |
