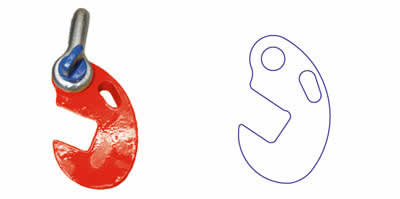

PIPE CLAMPS

• Part No.
• 02080601010
• Manuf. No.
• Standard Pack Quantity
• 1

• For prices and availability please Register or add to cart and submit as enquiry.
• 　
• EACH

Description

1.Using For Lifting Pipe Levely.
2.After The Installation Of Load-Free State Open Hand Does Not Drop.
3.The Rated Load Means The Maximum Weight Whichbe Sustained By Clamps With The Included Angle Of 60O The Two Legs.
4.The Proof Load Is 2 Times Working Load Limit,The Breaking Load Is 4 Times Working Load Limit.
5.Please Read The Product Sepcification Carefully Before Using It.

ART.NO	WLL/PAIR t	WALL THICKNESS mm
PHC0.5	0.5	≤12
PHC1	1	≤17
PHC2	2	≤25
PHC3	3	≤30
PHC5	5	≤40
PHC8	8	≤50
PHC10	10	≤55
PHC12	12	≤55
PHC20	20	≤65
