MULTI STEEL PLATE LIFTING CLAMPS (PDK)

• Part No.
• 0208060108
• Manuf. No.
• Standard Pack Quantity
• 1

• For prices and availability please Register or add to cart and submit as enquiry.
• 　
• EACH

Description

1.Using For Multi-Layered Piece Of Steel Lifting Levely.
2.The Rated Load Means The Maximum Weight Whichbe Sustained By Clamps With The Included Angle Of 60 The Two Legs.
3.Hoisting Operations In Group 4 Complementary, According To The Plate Can Be Suspended Adjust The Thickness Of The Clamp Position Of The Tongue.
4.Must Be Set To Use Balance Beam, In The Process Of Being Lifted Onto A Collision Can Not Be Suspended.The Proof Load Is 2 Times Working Load Limit,The Breaking Load Is 4 Times Working Load Limit.
5.Please Read The Product Sepcification Carefully Before Using It.

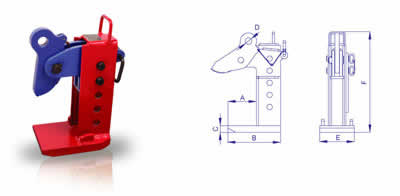

ART.NO	WLL/PAIR t	STELL PLATE mm	A mm	B mm	C mm	D mm	E mm	F mm	WEIGHT kg
PDK3	3	20～160	110	210	25	26	140	380	20
PDK5	5	40～240	130	240	30	30	158	450	29
PDK8	8	40～240	180	300	60	40	200	520	50
PDK15	15	40～240	180	300	75	50	235	530	72
