DOUBLE STEEL PLATE LIFTING CLAMPS

• Part No.
• 0208060107
• Manuf. No.
• Standard Pack Quantity
• 1

• For prices and availability please Register or add to cart and submit as enquiry.
• 　
• EACH

Description

1.Using For Lifting Steel Plates Of One Or Some.
2.The Rated Load Means The Maximum Weight Whichbe Sustained By Clamps With The Included Angle Of 60 The Two Legs.
3.Hoisting Operations In Group 4 Complementary, And Must Be Set To Use Balance Beam, In The Process Of Being Lifted Onto A Collision Can Not Be Suspended.
4.Automatically Link
5.The Proof Load Is 2 Times Working Load Limit,The Breaking Load Is 4 Times Working Load Limit.
6.Please Read The Product Sepcification Carefully Before Using It.

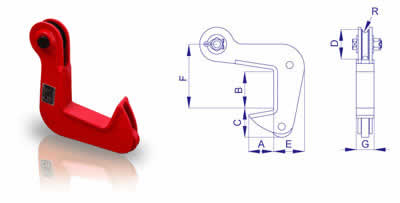

ART.NO	WLL/PAIR t	STELL PLATE mm	A mm	B mm	C mm	D mm	E mm	F mm	G mm	R mm	WEIGHT kg
DCQB4	4	40～100	72	102	70	74	82	179	60	10	7
DCQB6	6	40～120	91	129	89	100	107	263	73	12	14
DCQB10	10	120～210	134	213	133	130	148	357	90	15	32
